This Z-Wave outdoor dimmer plug compatible with those Z-Wave hub: SmartThings, Vera, Wink, Fibaro, Homeseer, 2GIG, Hubitat(change device type). ALEXA & GOOGLE ASSISTANT COMPATIBLE (requires a Z-Wave certified hub). CANNOT connect directly with ECHO PLUS！Z-Wave Frequency: 908.42MHz. FCC & ETL listed.

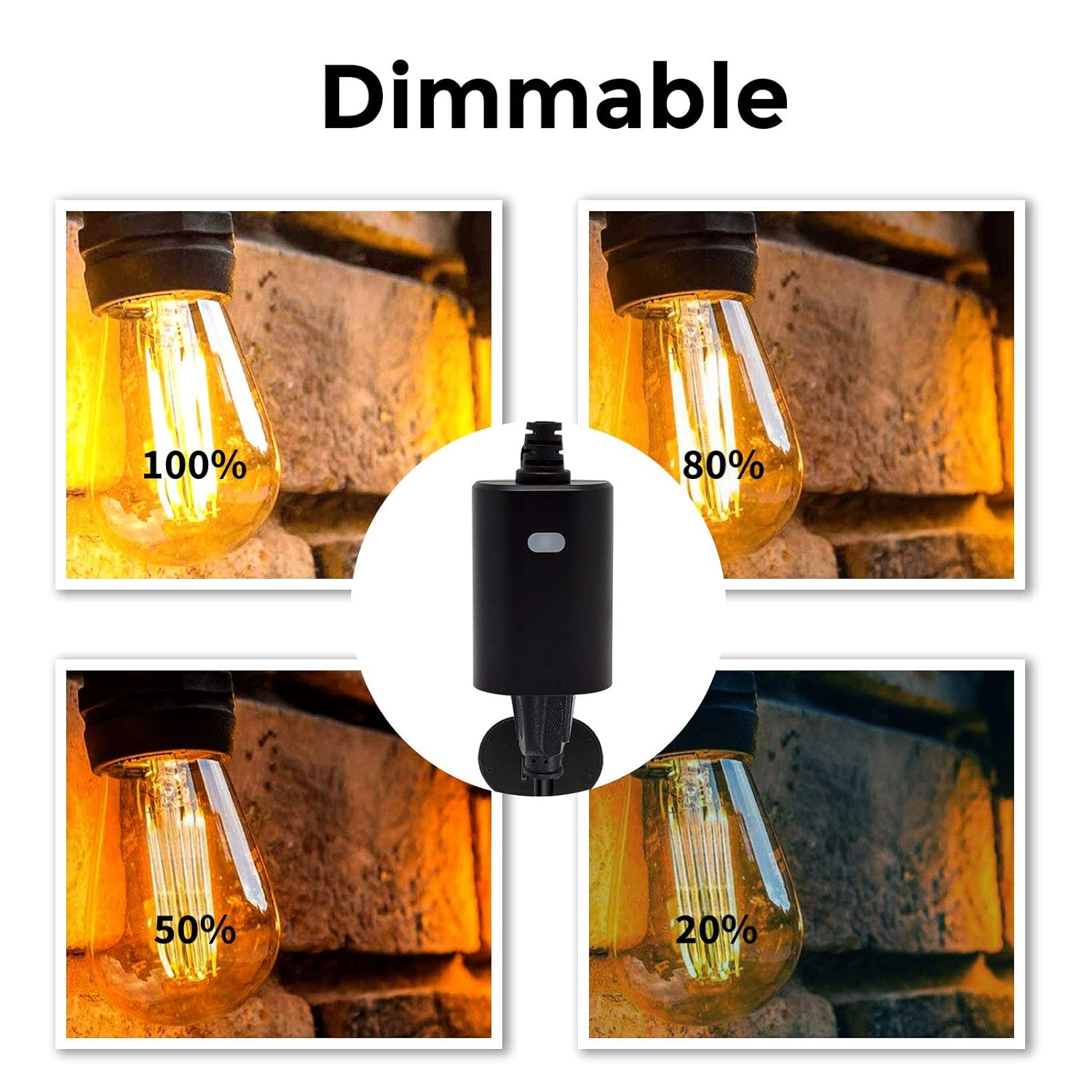

0-100% Dimming and Voice Control: This Z-Wave outdoor dimmer for string lights can adjust the light brightness from 0-100% by voice commands. Just say:“Hey Alexa, set the led strip lights to 75%”.

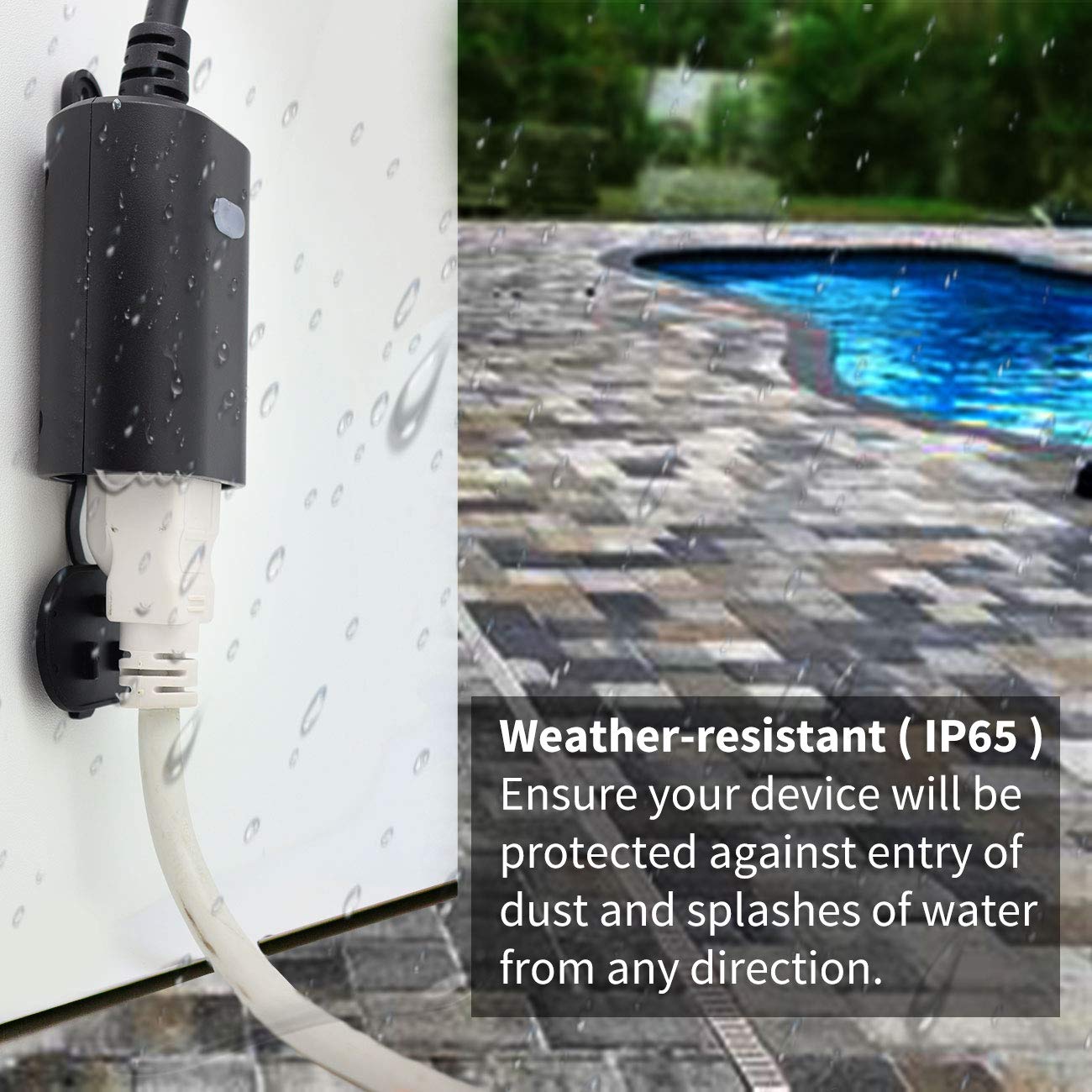

Ideal for Outdoor: IP65 weatherproof housing. Ideal for Garden, Backyard, Kitchen, Bathroom, Porch, Balcony, Garage, Basement, Patio or Electric grill, Sprinkler, Washing machine, Christmas tree, landscape lighting, fountains, lamps, pumps, and other outdoor or indoor-use electric appliances.
Schedule and Timer: You can set automatic daily timers or create on/off routing so that the Z-Wave plug can turn on and off automatically. And saving energy when the plugged-in appliances are not needed or are left on by accident.
400W Max Power Z-Wave Dimmer Plug: The Z-Wave plug-in smart dimmer plug works with dimmable string lights in LED, INC bulb. Please make sure your string lights are dimmable and the total power is less than 400W. 150W Max for LED/CFL, 400W Max for Incandescent.
Hardware Specifications
Model Number
MP22ZD
Power
125V AC, 60Hz
Max. Loading
400W Max (LED/CFL 150W, incandescent 400W)
Temperature Range
-4°F ~ 122°F
Setting Timer
Yes — schedules / countdown
Voice & Remote Control
Alexa, Google Assistant (via hub)
Dimmer Function
Yes — 0-100%
Energy Monitoring
No
Q: What's the dimming range?
A: 1-100% stepless dimming via app, voice, or the button.
Q: Are there bulb requirements?
A: Dimmable bulbs only. Incandescent max 200W, dimmable LED / CFL max 100W — overloading causes flicker or damage.
Q: Do I need to buy a hub?
A: A Z-Wave hub is required. It cannot connect directly to Echo Plus.
🚚Free Shipping over $99
▲
Enjoy safe and speedy delivery for your purchases. Free shipping on orders over $99.
📦30-Day Returns
▲
No hassle returns, 30 days return policy.
🛡️1-Year Official Warranty
▲
Official guarantee from Minoston engineering. Register for 3-year extended coverage.
👥Lifetime Tech Support
▲
Get ongoing assistance with setup, troubleshooting, and product-related questions.
PDF

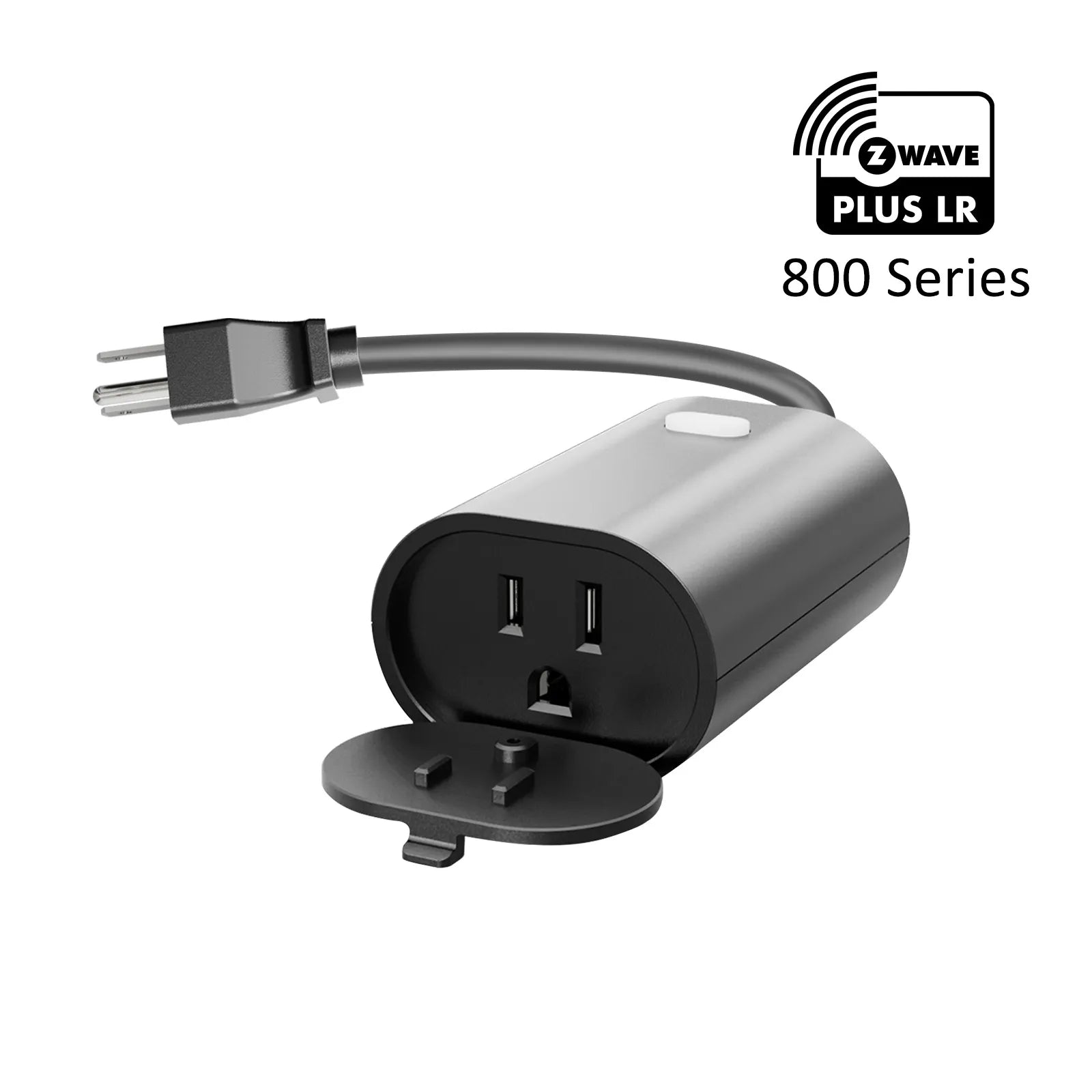

Minoston Z-Wave 800 Series Dimmer Smart Plug for Outdoor and Indoor (MP22ZD) User Manual
Official Installation, Pairing & Full Specification Guide
A Z-Wave hub, a dimmable light string, and the plug within 3 ft of it. Dimmable LED up to 150W, incandescent up to 400W.
Your hub has to support Z-Wave S2. Anything sold in the last few years does. Hang it vertically so the seal keeps water out.

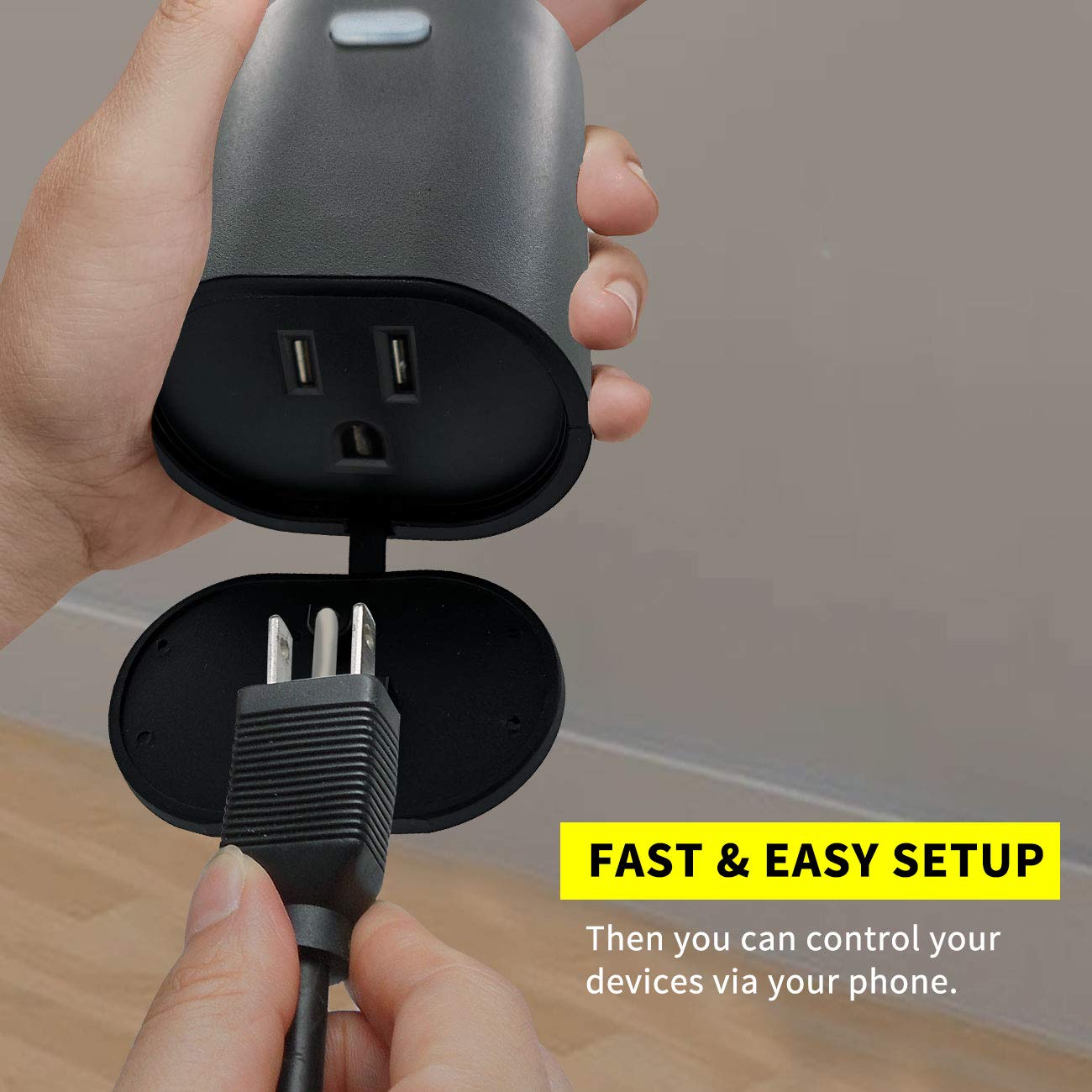

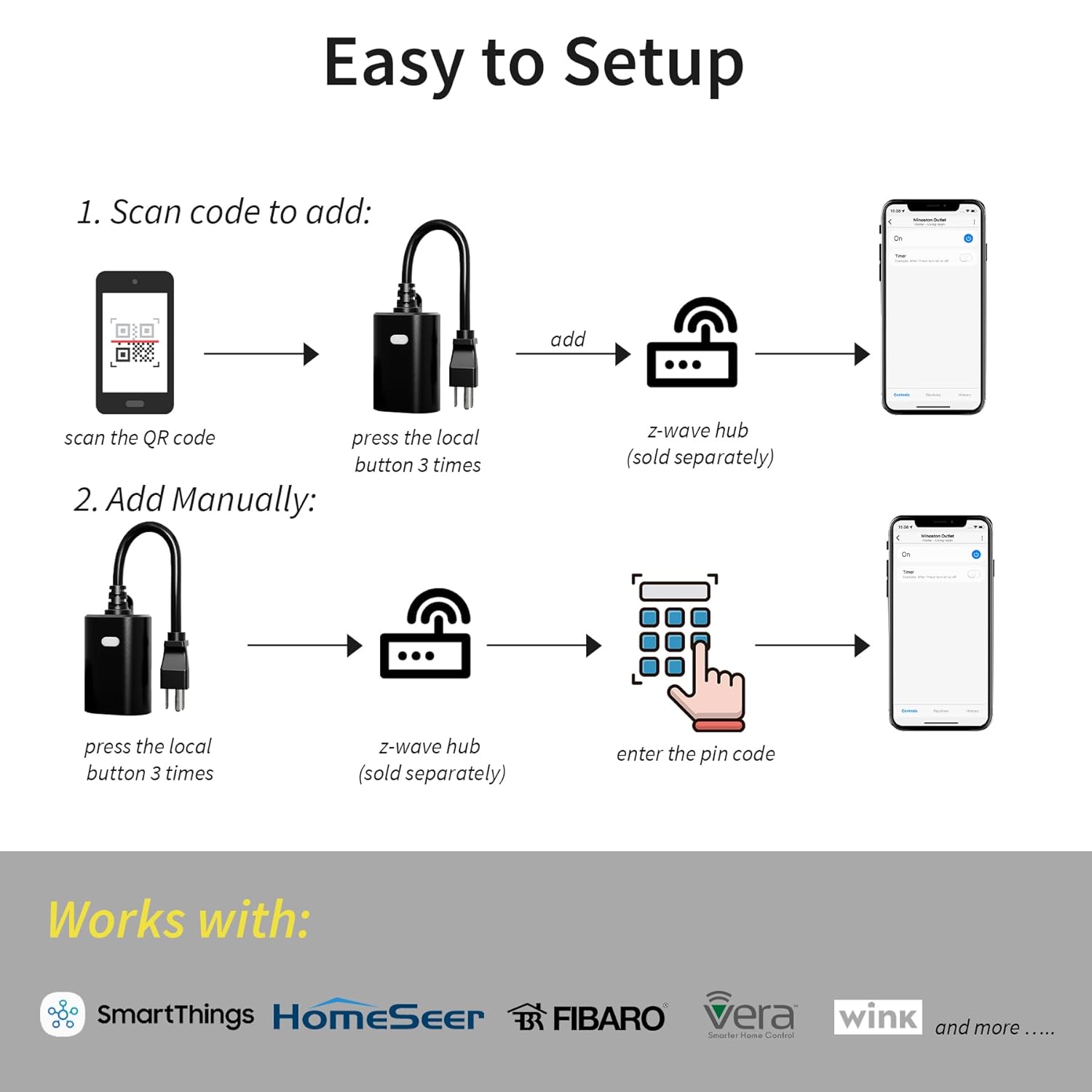

1. Open your hub app and start Add Device. Hubitat: Devices > Add Device > Z-Wave. SmartThings: + > Add Device > Z-Wave.
2. Plug the light string in, then press the button 3 times fast. The status light blinks fast, then stops when it is paired.
3. Check the app for a new plug, then rename it. Tap once for on/off, hold to dim.
