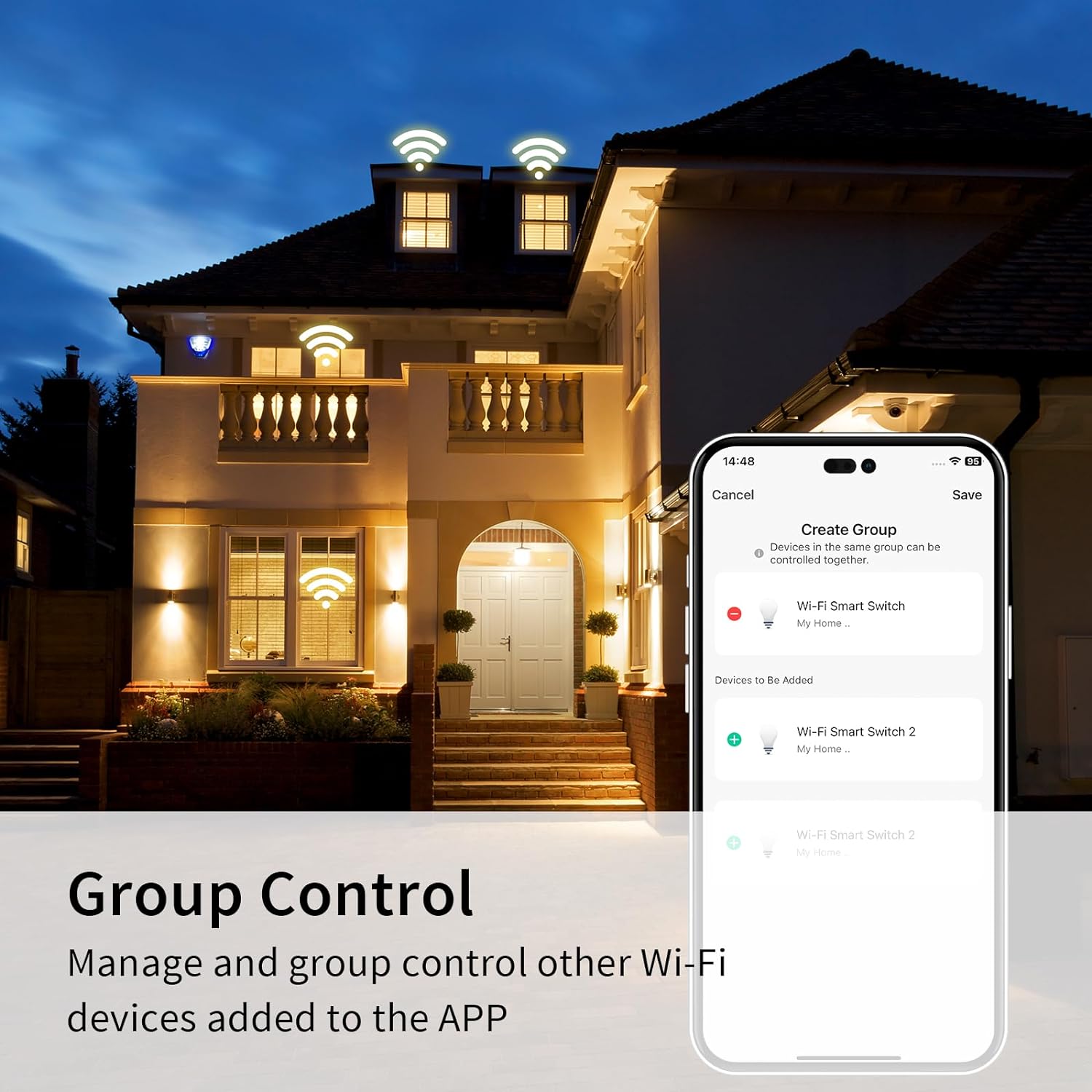

[Wifi smart switch] Connect to a 2.4Ghz Wi-Fi network to realize intelligent remote control and associated group control. It works with Smart Life, Minoston, Alexa, Google Home and Tuya. No hub reuqired and it is easy to set up(just 3 steps).

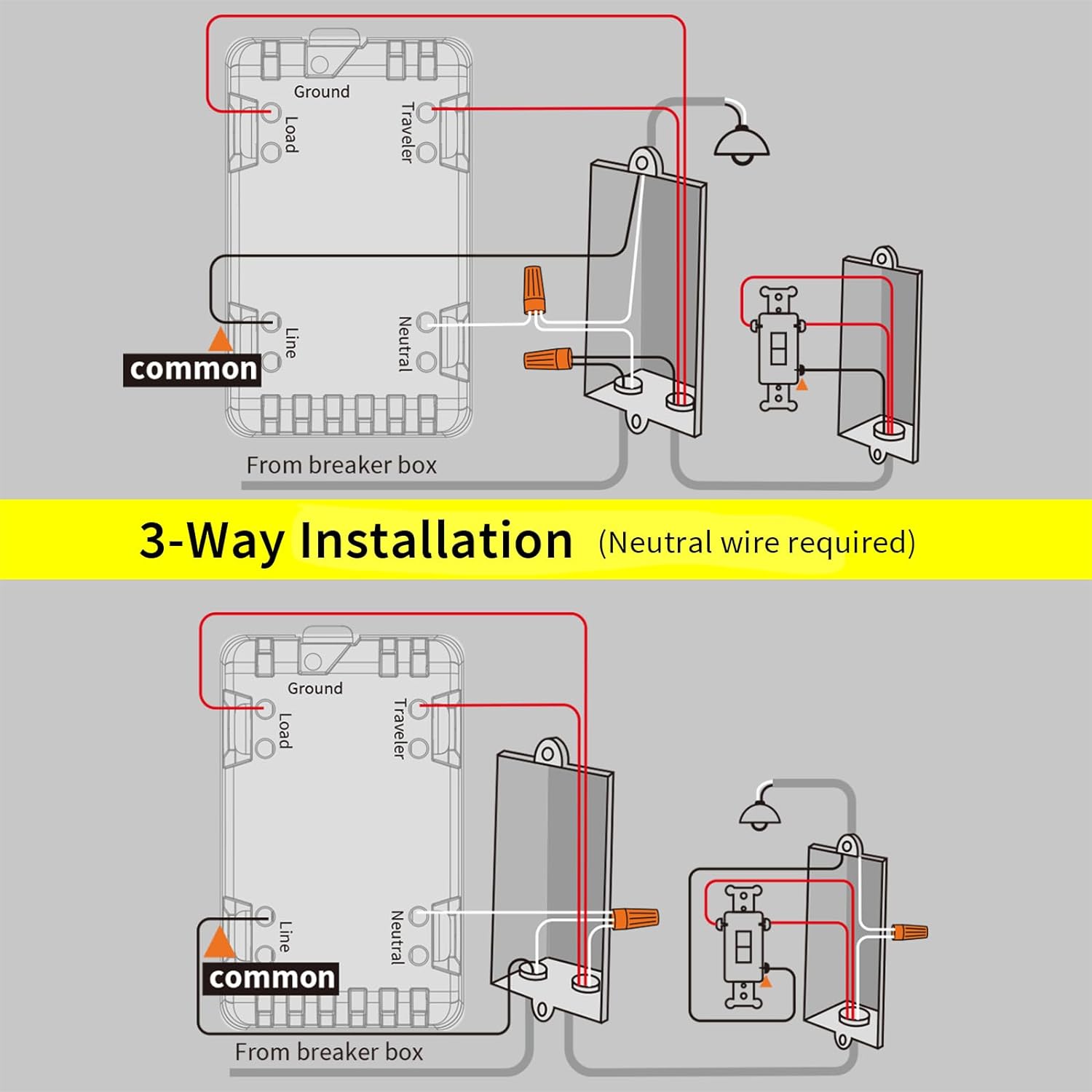

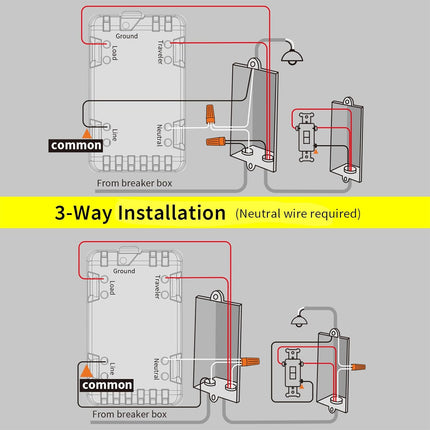

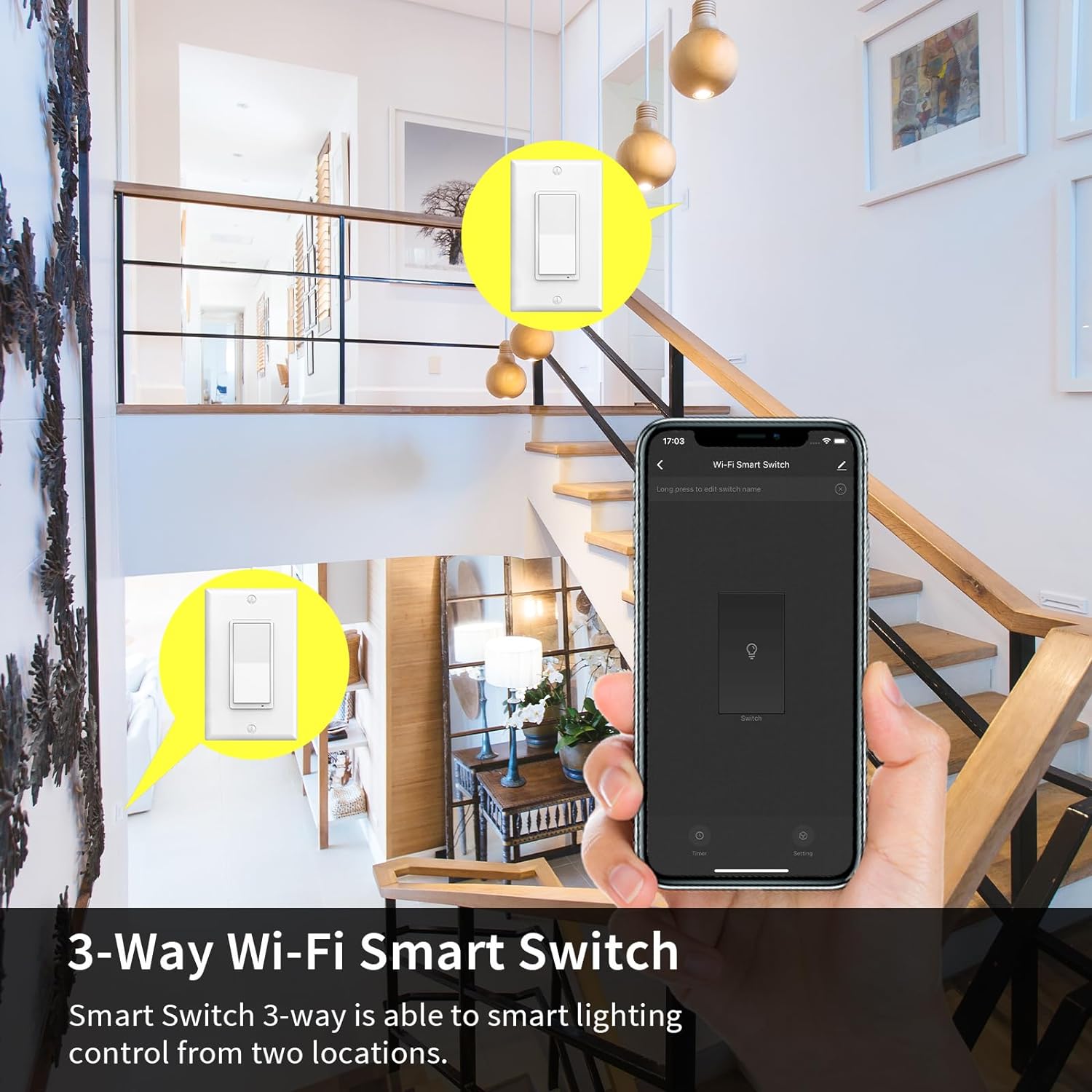

[Single-pole & 3-Way smart switch] Use this smart switch as a 3-way or single-pole switch to control the light from multi-locations. Upgrade your home's lighting control system with the new simple 3-way wiring solution.

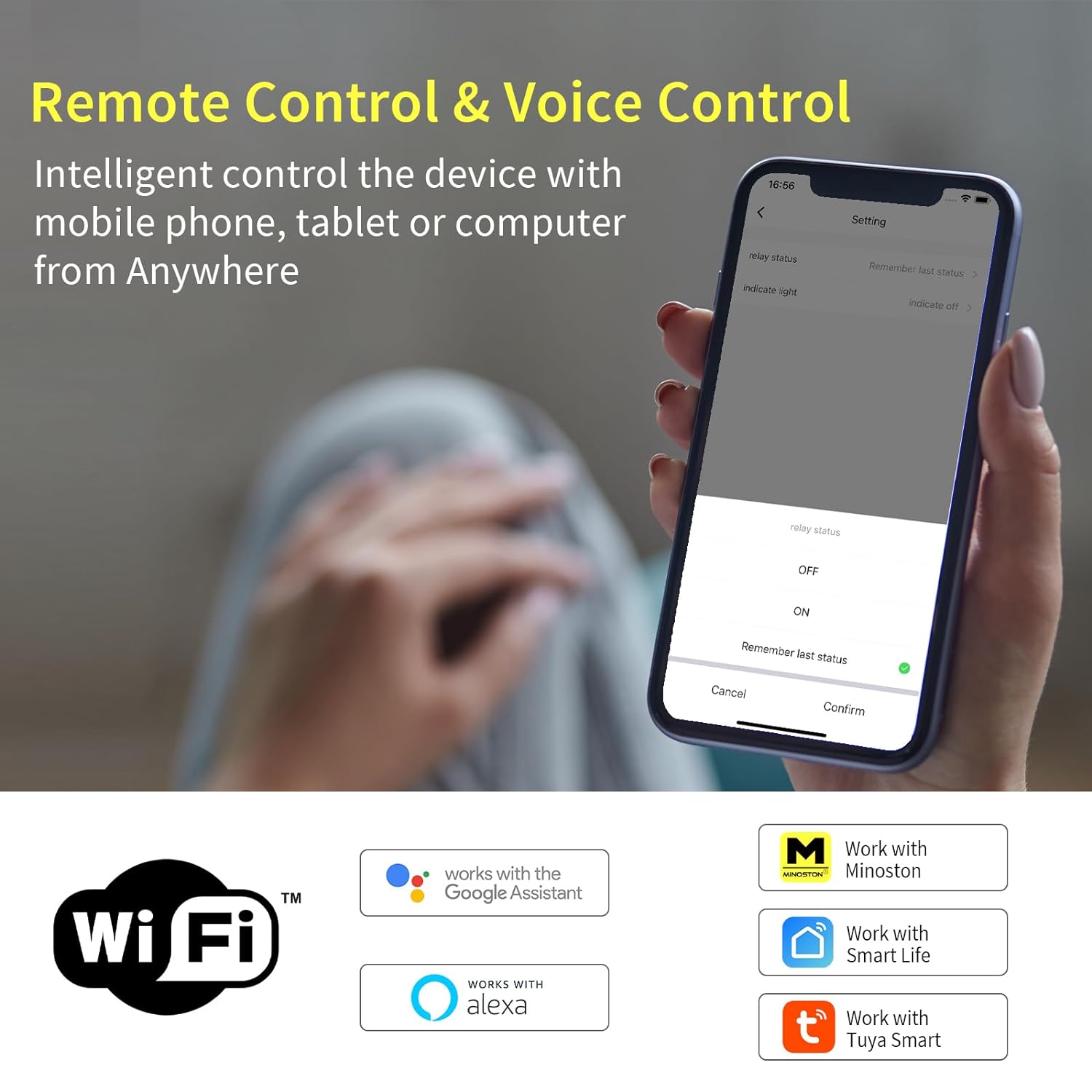

[Convenient Voice Control] Minoston Wi-Fi Smart Switch works with Alexa and Google Assistant to enjoy the hands-free convenience of controlling the lights connected to your home with your voice.

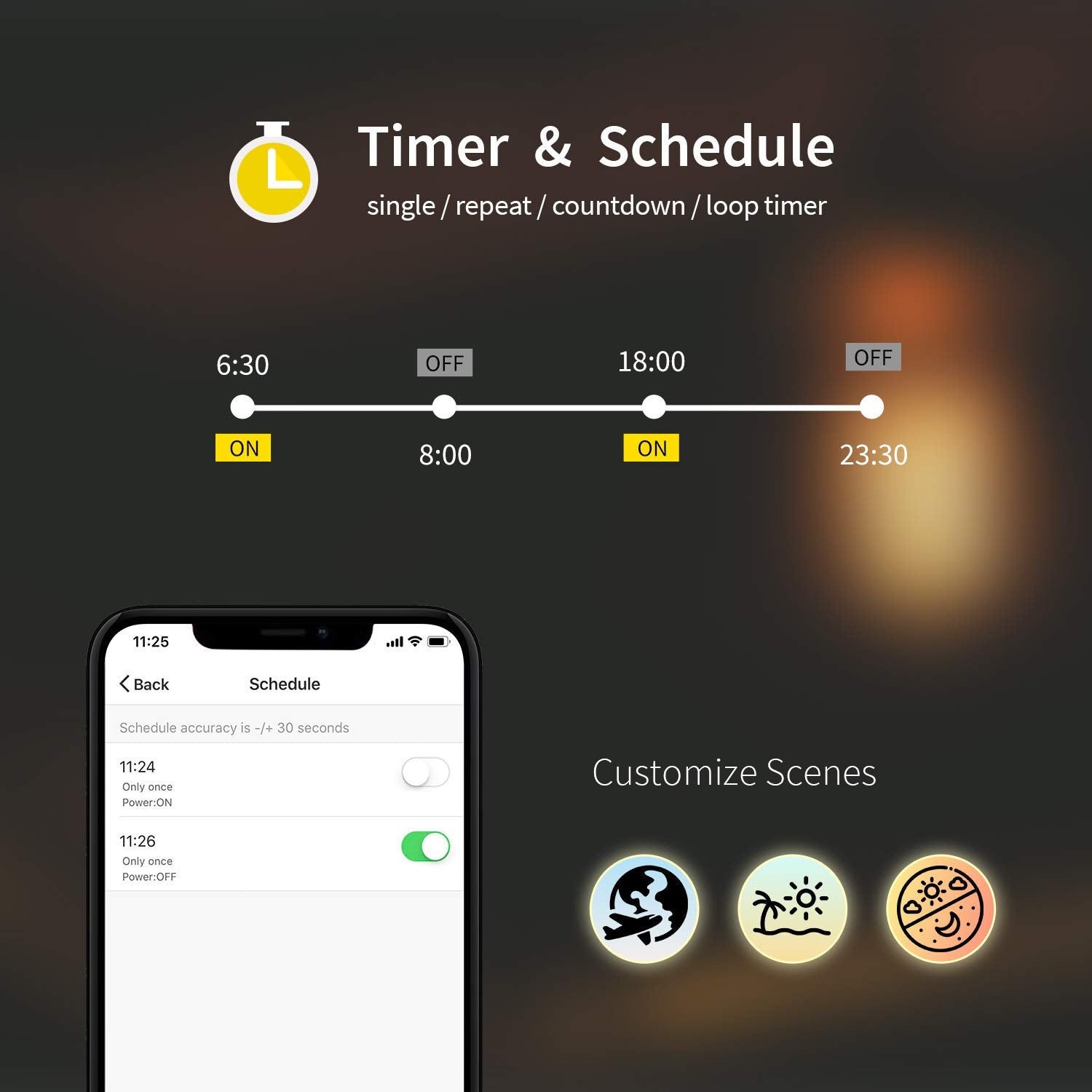

[Timer and Schedule] Create personalized schedules to turn on and off lights of the wifi smart switch at set times to fit your everyday routines.
[Specification] 120VAC,60Hz,2.4Ghz Only(Not for 5Ghz), 10A Max. Loading, Incandescent 625W, LED 150W, Resistive 1250W, 960-Watt of halogen CFL, temperature Range of 32° F~104°F. FCC and ETL Listed.
Hardware Specifications
Model Number
MS11W
Power
120V AC, 60Hz
Max. Loading
10A Max (Incandescent 625W / LED 150W / Resistive 1250W / Halogen CFL 960W)
Temperature Range
32°F ~ 104°F
Setting Timer
Yes — schedules / countdown
Voice & Remote Control
Alexa, Google Assistant
Dimmer Function
No (on/off only)
Energy Monitoring
No
What warranty is included with this product?
All Minoston hardware comes with an official 1-year manufacturer warranty and lifetime technical support.
How do I contact Minoston technical support?
You can reach our engineering support team directly at ask@minoston.com for setup assistance, wiring questions, or warranty claims.
Are installation instructions provided?
Yes, an official user manual with step-by-step operating instructions and electrical ratings is available for download on this page.
🚚Free Shipping over $99
▲
Enjoy safe and speedy delivery for your purchases. Free shipping on orders over $99.
📦30-Day Returns
▲
No hassle returns, 30 days return policy.
🛡️1-Year Official Warranty
▲
Official guarantee from Minoston engineering. Register for 3-year extended coverage.
👥Lifetime Tech Support
▲
Get ongoing assistance with setup, troubleshooting, and product-related questions.
PDF
Minoston Wi-Fi 3-Way Smart Switch ON OFF Switch(MS11W) User Manual
Official Installation, Pairing & Full Specification Guide
A neutral wire in the wall box and a 2.4GHz Wi-Fi network. No neutral means it will not power on at all.
1. Kill the breaker. Wire Line, Load, Neutral and Ground, put it back in the wall and turn the breaker on. Press the switch. The light comes on if the wiring is right.
2. Open the Minoston app, tap +, then Electrician, then Switch (Wi-Fi). Turn the switch off and hold Down for 10 seconds, until the blue status light blinks fast.
3. Check that your 2.4GHz network is selected, then type the password.
